Chipset: Intel H510
Sockets Supported: LGA1200
Supported CPU: Intel Core i9/ i7/ i5/ i3/ Pentium Gold/ Celeron Processors
Generation: 10th/11th
Memory Slot: 2
Memory Max.: 64GB
Brand | MSI |

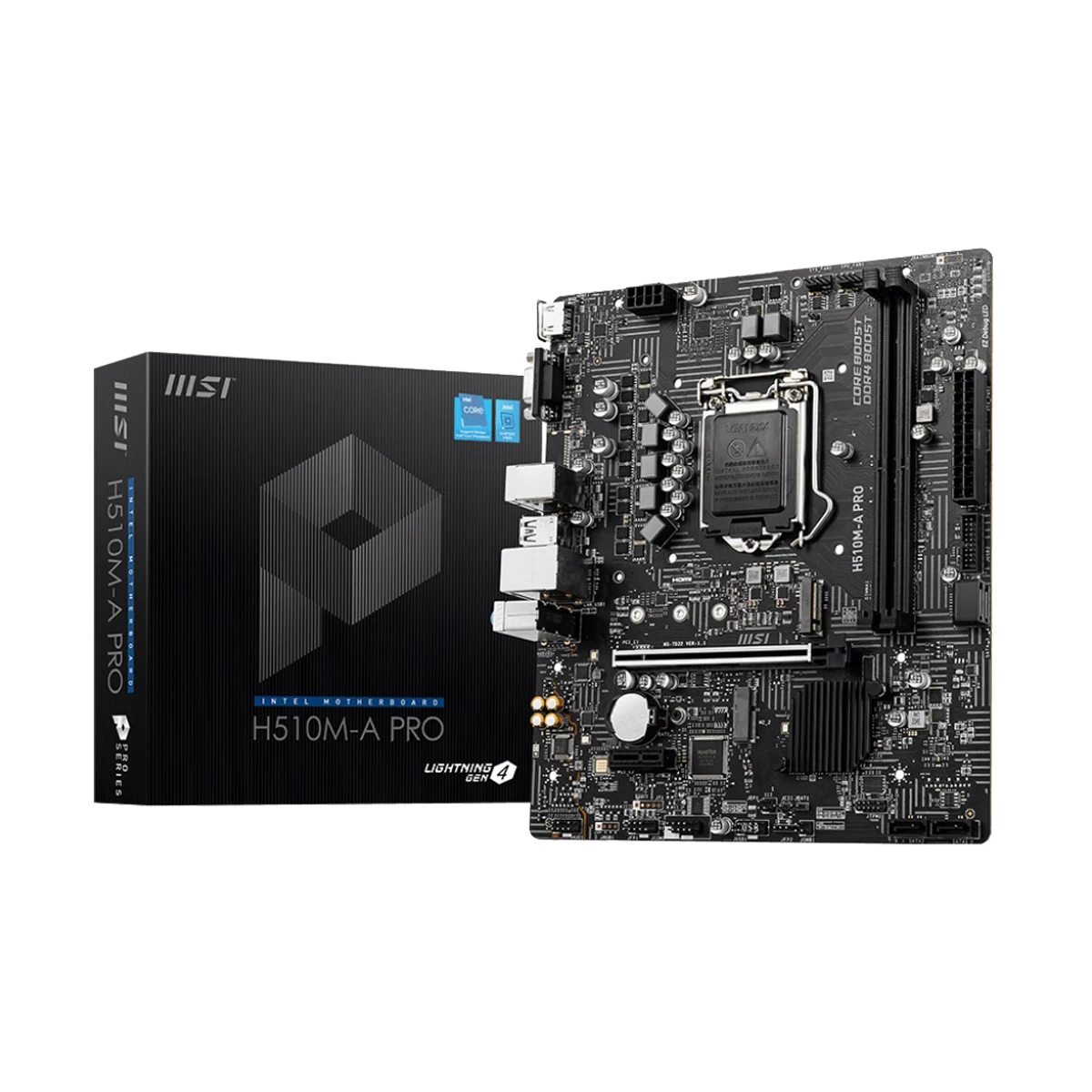

Model | MSI H510M-A PRO |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel H510 |
Sockets Supported | LGA1200 |
Built-in Processor | No |
Supported CPU | Intel Core i9/ i7/ i5/ i3/ Pentium Gold/ Celeron Processors |
Generation | 10th/11th |
Memory Type | DDR4 |
Memory MHz | 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 64GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 2 |
M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2 (Supports up to PCIe 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices), (1x M.2 slot with E key for WiFi (PCIe) module only)) |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1x PCIe x16 slot, 1x PCIe 3.0 x1 slot |
Audio Chipset | Realtek ALC897 |
Audio Channel | 7.1 |
LAN Chipset | Intel I219V Gigabit |
LAN Speed (Mbps) | 10/100/1000 Mbps |
WiFi | No |
USB Port | 3 x USB 3.2 Gen 1 Type-A, 5 x USB 2.0 |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
DisplayPort (DP) | No |
SATA Port | Yes |
Thunderbolt | No |
TPM Port | 1 |
COM Port | No |
CrossFire Support | No |
Sli Support | No |
RGB Support | No |
RGB Connector | Not Applicable |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
Supported Operating System | Windows 10 64-bit |
Warranty Details | 3 year |
Feature | 7.1-Channel High Definition Audio, 1x Intel® I219V 1Gbps LAN controller. |
Others | 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 4x SATA 6Gb/s connectors, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1x USB 2.0 connector (supports additional 2 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x System panel connectors, 1x Serial port connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x TPM module connector. |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
