Chipset: Intel H510
Sockets Supported: LGA1200
Supported CPU: Intel Core, Pentium, Gold and Celeron Processors
Generation: 10th/11th
Memory Slot: 2
Memory Max.: 64GB
Brand | Asus |

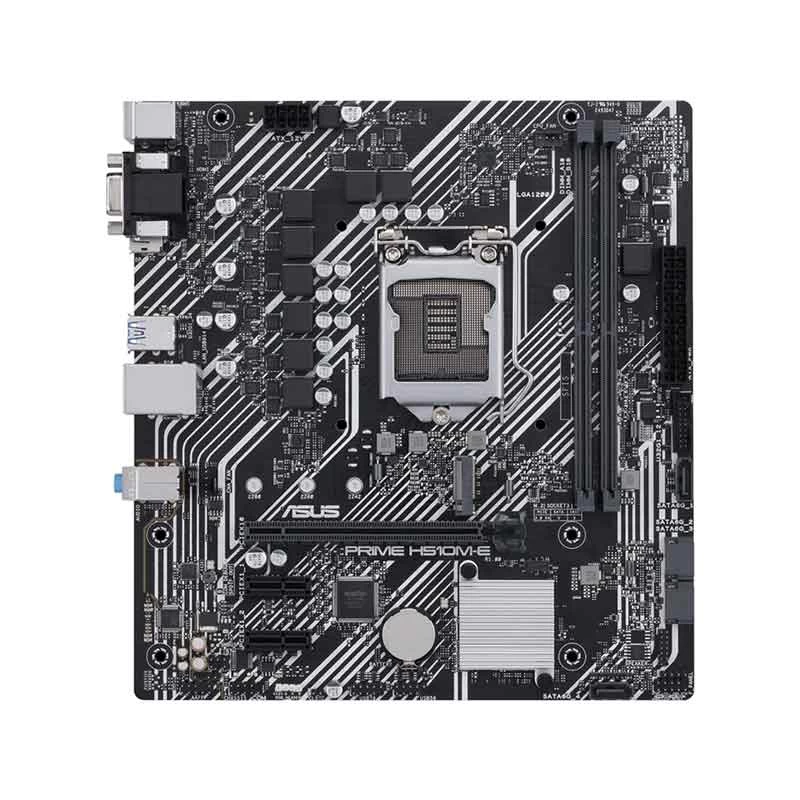

Model | Asus PRIME H510M-E |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel H510 |
Sockets Supported | LGA1200 |
Built-in Processor | No |
Supported CPU | Intel Core, Pentium, Gold and Celeron Processors |
Generation | 10th/11th |
Memory Type | DDR4 |
Memory MHz | 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 64GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCIe 4.0/3.0 x16 slot (Intel 11th & 10th Gen Processors), 2 x PCIe 3.0 x1 slots (Intel H510 Chipset) |
Audio Chipset | Realtek ALC897/887 |
Audio Channel | 7.1 |
LAN Chipset | Intel I219-V 1Gb Ethernet |
WiFi | No |
USB Port | 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
SATA Port | 4 x SATA |
Thunderbolt | No |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
Supported Operating System | Windows 11/ 10 |
Warranty Details | 3 Years Replacement Warranty |
Feature | Intel H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type A, SATA 6Gbps, COM header, RGB header |
Others | Back Panel I/O Ports: 1 x Intel I219-V 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x 10-1 pin System Panel header. Manageability: WOL by PME, PXE |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
