Chipset: Intel H610
Sockets Supported: LGA1700
Supported CPU: 12th/13th Gen Intel Core, Pentium Gold and Celeron Processors
Generation: 12th/13th
Memory Slot: 2
Memory Max.: 64GB
Brand | Asus |

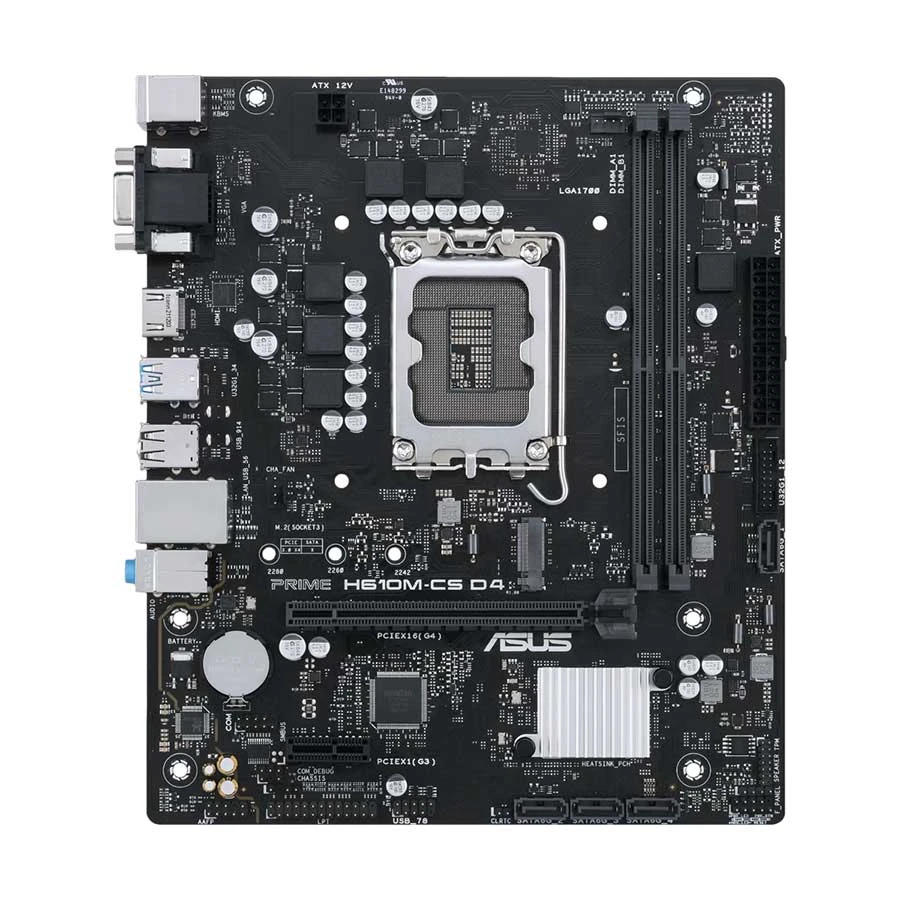

Model | Asus PRIME H610M-CS D4 |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel H610 |
Sockets Supported | LGA1700 |
Built-in Processor | No |
Supported CPU | 12th/13th Gen Intel Core, Pentium Gold and Celeron Processors |
Generation | 12th/13th |
Memory Type | DDR4 |
Memory MHz | 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 64GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCIe 4.0 x16 SafeSlot Core, 1 x PCIe 3.0 x1 |
Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Audio Channel | 7.1 |
LAN Chipset | Realtek 1Gb Ethernet |
LAN Speed (Mbps) | 0/100/1000 Mbps |
WiFi | No |
USB Port | 2 x USB 3.2 Gen 1 ports (2 x Type-A),4 x USB 2.0 ports (4x Type-A) |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
SATA Port | 4 |
Thunderbolt | No |
TPM Port | Yes |
CrossFire Support | No |
Sli Support | No |
RGB Support | No |
Approx. Power Consumption | 70W |
Form Factor | ATX |
Supported Operating System | System Window 10, 11 |
Warranty Details | 3 Year Replacement |
Feature | Intel LGA 1700 socket: Ready for 12th Gen Intel processors, Comprehensive cooling: PCH heatsink, Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1, 5X Protection III: Multiple hardware safeguards for all-round protection, Luminous anti-moisture coating: Keep key components from moisture and corrosion |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
