Chipset: Intel B760
Sockets Supported: LGA1700
Supported CPU: 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Generation: 12th/13th/14th
Memory Slot: 2
Memory Max.: 64GB
Brand | Gigabyte |

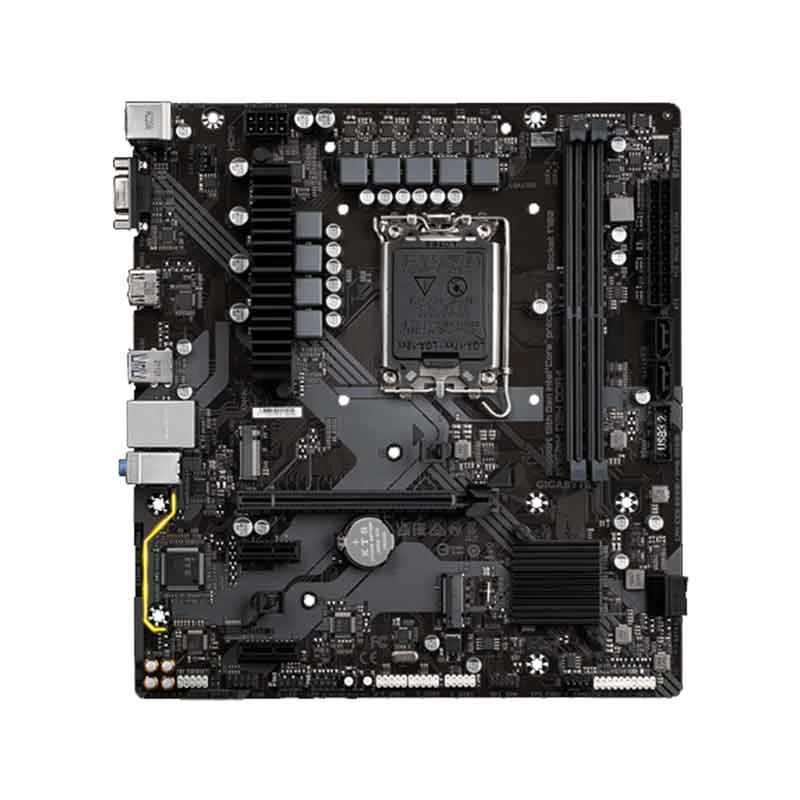

Model | Gigabyte B760M D2H |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel B760 |
Sockets Supported | LGA1700 |
Built-in Processor | No |
Supported CPU | 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
Generation | 12th/13th/14th |
Memory Type | DDR4 |
Memory MHz | 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s non-ECC Un-buffered DIMM |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 64GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 2 |
M.2/SSD Expansion Slot Details | 1 x M.2, type 2280 SATA and PCIe 3.0 x4/x2 SSD |
Graphics | Integrated |
Graphics Chipset | Intel HD Graphics support |
PCI Express Slot | 1 x PCI Express x16, 2 x PCI Express x1 |
Audio Chipset | Realtek Audio CODEC |
Audio Channel | 7.1 |
LAN Chipset | Realtek 2.5GbE LAN |
LAN Speed (Mbps) | 10/ 100/ 1000/ 2500Mbps |
WiFi | No |
Bluetooth | No |
USB Port | 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
DisplayPort (DP) | No |
SATA Port | 4 |
Thunderbolt | No |
TPM Port | 1 |
COM Port | No |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
RGB Connector | 1 x RGB LED strip header |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
BIOS Type | 1 x 128 Mbit flash |
BIOS Model | AMI UEFI BIOS |
Supported Operating System | Windows 10, 11 |
Compatible Products | 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
Warranty Details | 3 year |
Feature | Unparalleled Performance Hybrid 6+2+1 Phases Digital VRM Solution, Dual Channel DDR4 2 DIMMs XMP Memory Module Support, Next Generation Storage 2 PCIe 4.0 x4 M.2 Connectors, EZ-Latch PCIe 4.0x16 Slot with Quick Release Design, Fast Networks 2.5GbE LAN, Extended Connectivity HDMI, D-Sub, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card. |
Others | 6+2+1 Phases Hybrid Digital VRM Design, PERSONALIZATION, Support for Q-Flash, Support for Q-Flash Plus |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
