Chipset: Intel B760
Sockets Supported: LGA1700
Supported CPU: Support for the 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Generation: 12th/13th/14th
Memory Slot: 4
Memory Max.: 192GB
Brand | Gigabyte |

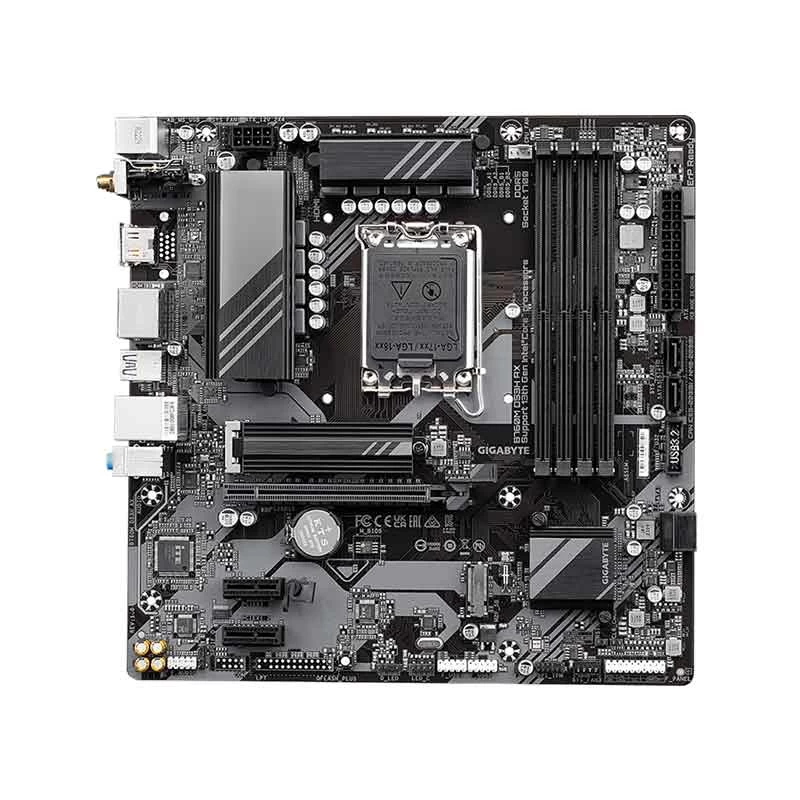

Model | Gigabyte B760M DS3H AX (Wi-Fi 6E) |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel B760 |
Sockets Supported | LGA1700 |
Built-in Processor | No |
Supported CPU | Support for the 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
Generation | 12th/13th/14th |
Memory Type | DDR5 |
Memory MHz | 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC & Un-buffered Memory. |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Max. | 192GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 2 |
M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)) |
Graphics | Integrated |
Graphics Chipset | Intel HD Graphics support |
PCI Express Slot | 1 x PCI Express x 16 (PCIe 4.0 and running at x16), 2 x PCI Express x 1 (PCIe 3.0 and running at x 1) |
Audio Chipset | Realtek Audio CODEC |
Audio Channel | 2/4/5.1/7.1 |
LAN Chipset | Realtek 2.5GbE LAN chip |
LAN Speed (Mbps) | 10/ 10/ 1000/ 2500Mbps |
WiFi | Yes |
Bluetooth | Bluetooth 5.3 |
USB Port | 2 x USB 2.0/1.1, 3 x USB 3.2 Gen 1, 1 x USB Type-C, with USB 3.2 Gen 2 support |
VGA Port | No |
DVI Port | No |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
IDE Port | No |
SATA Port | 4 x SATA |
Thunderbolt | No |
TPM Port | 1 |
COM Port | No |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
RGB Connector | 1 x RGB LED strip header |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
BIOS Type | 1 x 128 Mbit flash |
BIOS Model | AMI UEFI BIOS |
Supported Operating System | Windows 11, 10 |
Compatible Products | Core i3, Core i5, Core i7,Core i9, Pentium Gold (12th Gen, 13th Gen & 14th Gen) |
Warranty Details | 3 year |
Feature | Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, 6+2+1 Phases Hybrid Digital VRM Design, Enlarged Surface Design of MOSFET Heatsink greatly improves heat dissipation. |
Others | Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R), 1 x RJ-45 port, 3 x audio jacks, I/O Controller: iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control. |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
