Chipset: Intel H610
Sockets Supported: LGA1700
Supported CPU: 12th, 13th & 14th Intel Core, Pentium Gold, Celeron Processors
Generation: 12th/13th/14th
Memory Slot: 2
Memory Max.: 64GB
Brand | Gigabyte |

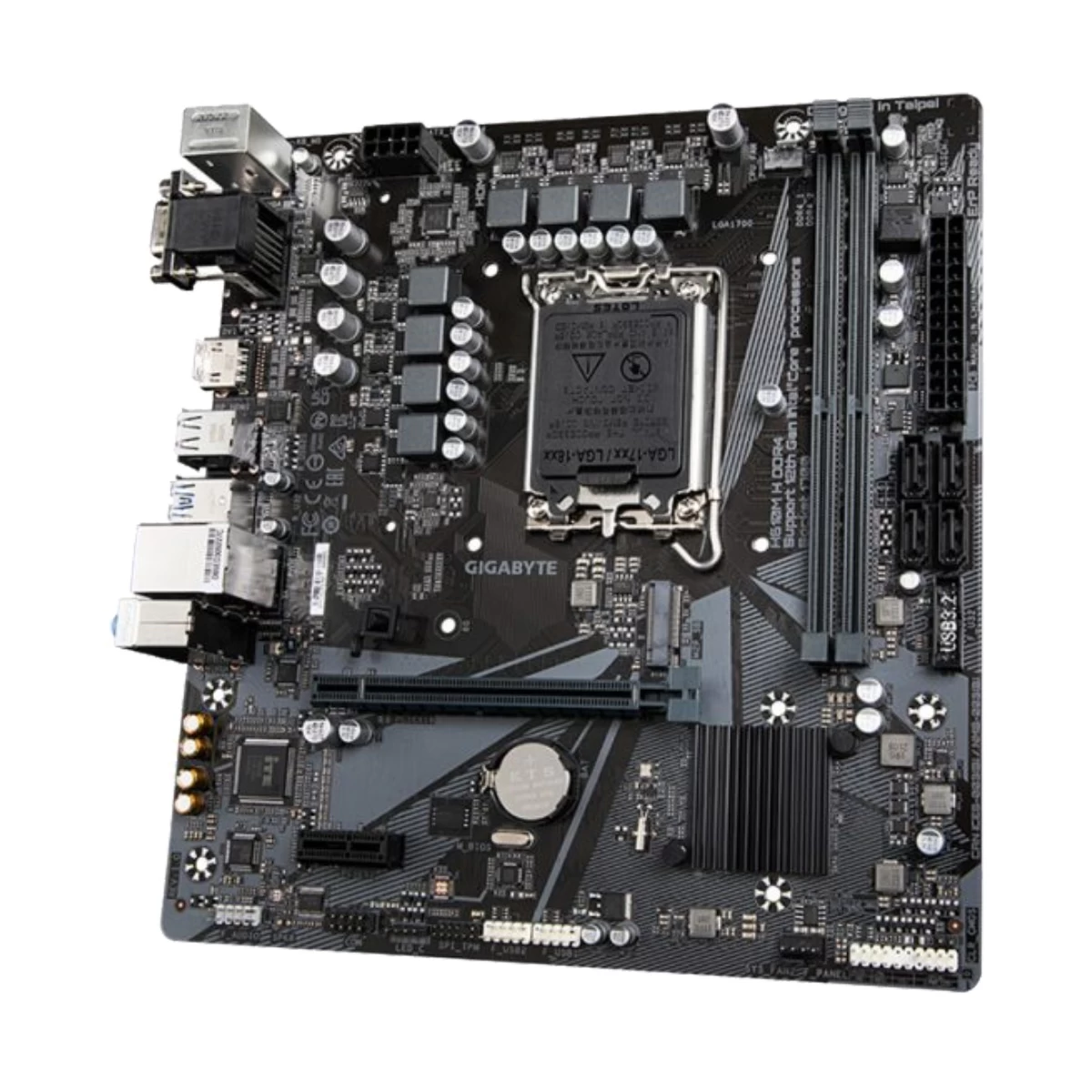

Model | Gigabyte H610M H |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel H610 |
Sockets Supported | LGA1700 |
Built-in Processor | No |
Supported CPU | 12th, 13th & 14th Intel Core, Pentium Gold, Celeron Processors |
Generation | 12th/13th/14th |
Memory Type | DDR4 |
Memory MHz | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 64GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD) |
Graphics | Integrated |
Graphics Chipset | Intel HD Graphics support |
PCI Express Slot | 1 x PCI Express x16, 1 x PCI Express x1 |
Audio Chipset | Realtek Audio |
Audio Channel | 7.1 |
LAN Chipset | Intel GbE LAN |
LAN Speed (Mbps) | 10/100/1000 Mbps |
WiFi | No |
Bluetooth | No |
USB Port | 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
DisplayPort (DP) | No |
SATA Port | 4 x SATA |
Thunderbolt | No |
TPM Port | 1 |
COM Port | No |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
RGB Connector | 1 x RGB LED strip header |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
BIOS Type | 1 x 256 Mbit flash |
BIOS Model | AMI UEFI BIOS |
Supported Operating System | Windows 11 and 10 |
Compatible Products | LGA1700 Socket 12th, 13th & 14th Gen Intel Processor |
Warranty Details | 3 year |
Feature | Supports 12th/13th Gen Intel Core Series Processors. Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. Intel GbE LAN with cFosSpeed Internet Accelerator Software. High Quality Audio Capacitors and Audio Noise Guard. Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP. GIGABYTE APP Center, Simple and Easy Use. Anti-Sulfur Resistors Design. |
Others | Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x front panel header, 1 x serial port header, 1 x Clear CMOS jumper. Back Panel Connectors: 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x RJ-45 port, 3 x audio jacks. |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
