Chipset: Intel H110
Sockets Supported: LGA1151
Supported CPU: Intel Core i7 / i5 / i3 / Pentium / Celeron processors
Generation: 6th/7th/8th/9th
Memory Slot: 2
Memory Max.: 32GB
| Brand | Gigabyte |

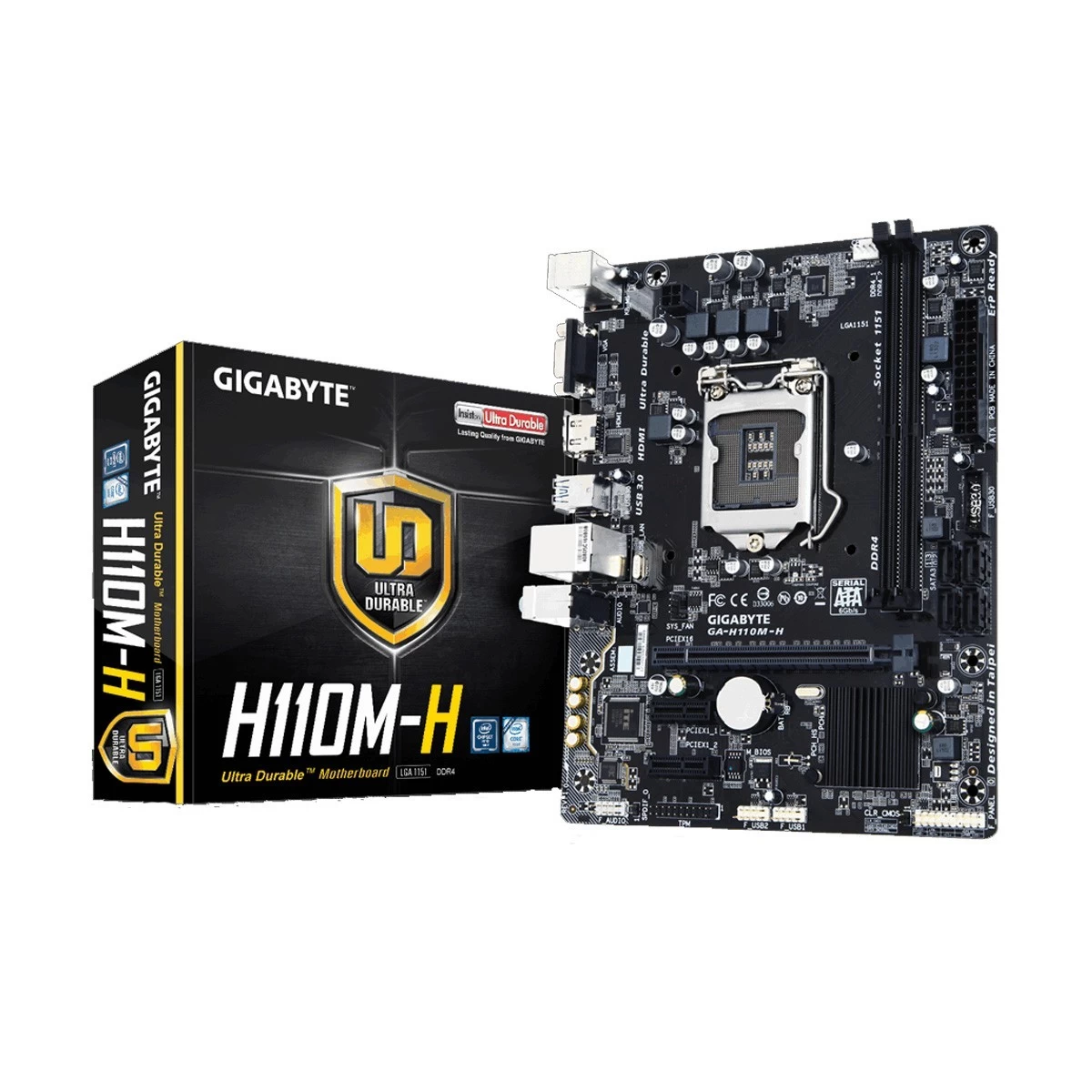

| Model | Gigabyte GA-H110M-H |
| Body Color | Black |
| Chipset Brand | Intel |
| Chipset | Intel H110 |
| Sockets Supported | LGA1151 |
| Built-in Processor | No |
| Supported CPU | Intel Core i7 / i5 / i3 / Pentium / Celeron processors |
| Generation | 6th/7th/8th/9th |
| Memory Type | DDR4 |
| Memory MHz | 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max. | 32GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | No |
| Graphics | Integrated |
| Graphics Chipset | Intel HD Graphics support |
| PCI Express Slot | 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots |
| Audio Chipset | Realtek ALC887 |
| Audio Channel | 2/4/5.1/7.1 |
| LAN Chipset | Realtek GbE LAN |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| WiFi | No |
| USB Port | 4 x USB3.0, 6 x USB2.0 |
| VGA Port | 1 |
| DVI Port | No |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| Thunderbolt | No |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| BIOS Type | 1 x 64 Mbit flash |
| BIOS Model | AMI UEFI BIOS |
| BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Supported Operating System | Windows 7 / 8.1 / 10 |
| Warranty Details | 3 year |
| Feature | 3D OSD, AutoGreen, Cloud Station, EasyTune, Fast Boot, Smart TimeLock, Smart Keyboard, Smart Backup, System Information Viewer, USB Blocker, Q-Flash, Smart Switch, Xpress Install |
| Others | 1 x CPU fan header, 1 x system fan header, 1 x Trusted Platform Module (TPM) header, 1 x Clear CMOS jumper, 3 x audio jacks (Line In, Line Out, Mic In), Supported OS Details: (Windows 10 64-bit (for 7th Generation Intel Processors) and Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors)) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
