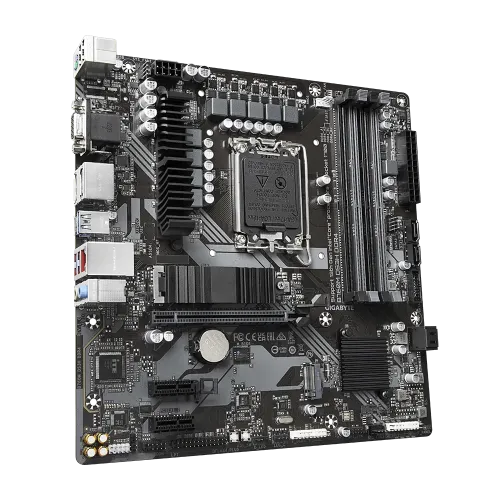

Model: B760M DS3H DDR4
Supported CPU: 14th/ 13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip
View More Info
Brand | Gigabyte |
Model | GIGABYTE B760M DS3H DDR4 |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel B760 Express Chipset |
Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
Memory Type | DDR4 |
Memory Slot | 4 |
Memory Max. | 128GB |
Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
PCI Express Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
USB Port | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers |
HDMI Port | 1x HDMI |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Warranty Details | 3 years |
