Chipset: Intel H610
Sockets Supported: LGA1700
Supported CPU: 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Generation: 12th/13th/14th
Memory Slot: 2
Memory Max.: 96GB
Brand | MSI |

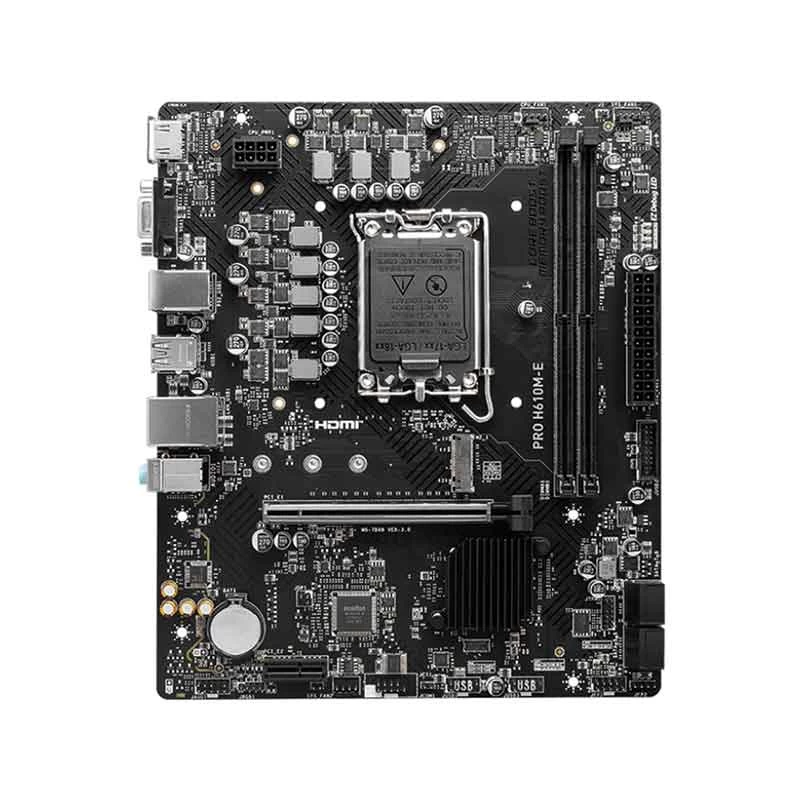

Model | MSI PRO H610M-E |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel H610 |
Sockets Supported | LGA1700 |
Built-in Processor | No |
Supported CPU | 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
Generation | 12th/13th/14th |
Memory Type | DDR5 |
Memory MHz | 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC, un-buffered memory |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 96GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 (1 x M.2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices) |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCI-e x 16, 1 x PCI-e x 1 (PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)) |
Audio Chipset | Realtek ALC897 Codec |
Audio Channel | 7.1 |
LAN Chipset | Realtek RTL8111H |
LAN Speed (Mbps) | 10/ 100/ 1000Mbps |
WiFi | No |
USB Port | 4 x USB 2.0, 2 x USB 3.2 Gen 1 Type-A |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
DisplayPort (DP) | No |
SATA Port | 4 x SATA |
Thunderbolt | No |
TPM Port | 1 |
COM Port | 1 |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
RGB Connector | 1 x RGB LED connector |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
Supported Operating System | Windows 11, 10 |
Compatible Products | Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th Gen) |
Warranty Details | 3 year |
Feature | Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Lightning Gen4 Solution: The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed. PCI-E Steel Armor: Protecting VGA cards against bending and EMI. EZ Debug LED: Easiest way to troubleshoot. Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience. |
Others | Internal I/O: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), Back Panel Ports: Keyboard / Mouse, Audio Connectors |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
