Chipset: Intel B760
Sockets Supported: LGA1700
Supported CPU: 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Generation: 12th/13th/14th
Memory Slot: 2
Memory Max.: 64GB
Brand | MSI |

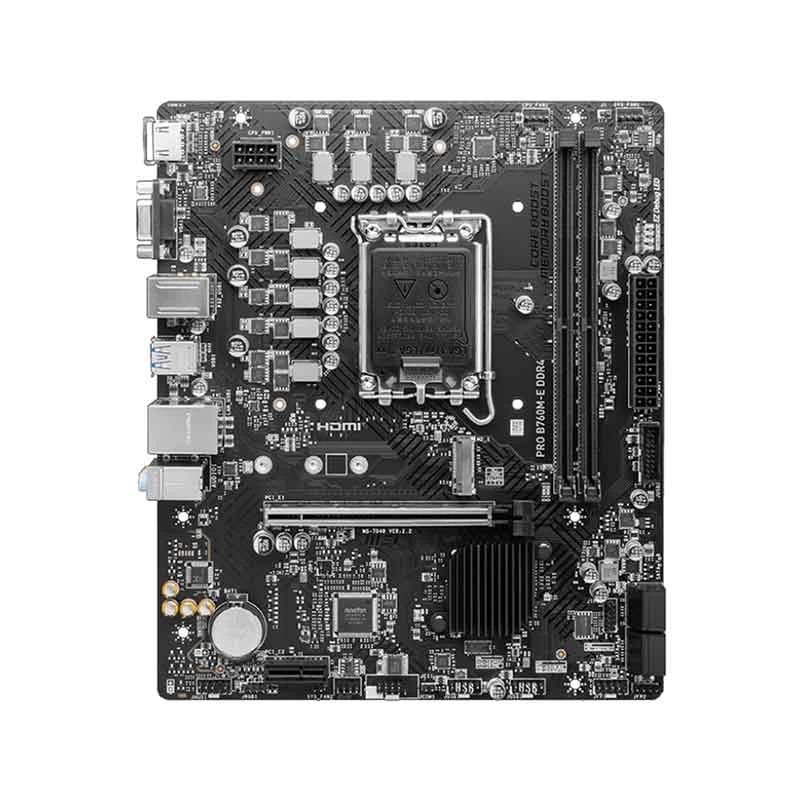

Model | MSI PRO B760M-E |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel B760 |
Sockets Supported | LGA1700 |
Built-in Processor | No |
Supported CPU | 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
Generation | 12th/13th/14th |
Memory Type | DDR4 |
Memory MHz | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DDR4 |
Memory Max. | 64GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 (M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices) |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCIe x16, 1 x PCIe x1 |
Audio Chipset | Realtek ALC897 Codec |
Audio Channel | 7.1 |
LAN Chipset | Realtek RTL8111H |
WiFi | No |
Bluetooth | No |
USB Port | 4 x USB 2.0, 2 x USB 3.2 Gen1 Type A |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
DisplayPort (DP) | No |
IDE Port | No |
SATA Port | 4 x SATA |
Thunderbolt | No |
TPM Port | Yes |
COM Port | 1 |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
RGB Connector | 1x RGB LED connector(JRGB) |
Approx. Power Consumption | 60W |
Form Factor | Mirco-ATX |
Supported Operating System | Windows 10, Windows 11 |
Compatible Products | Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors. LGA1700 socket. |
Warranty Details | 3 year |
Feature | The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC). Core Boost : With premium layout and digital power design to support more cores and provide better performance. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2. AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience. Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength. |
Others | Internal I/O: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x TPM pin header(Support TPM 2.0), Back Panel Port: Keyboard / Mouse, LAN port, Audio Connectors, LED Feature: 4x EZ Debug LED. |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
