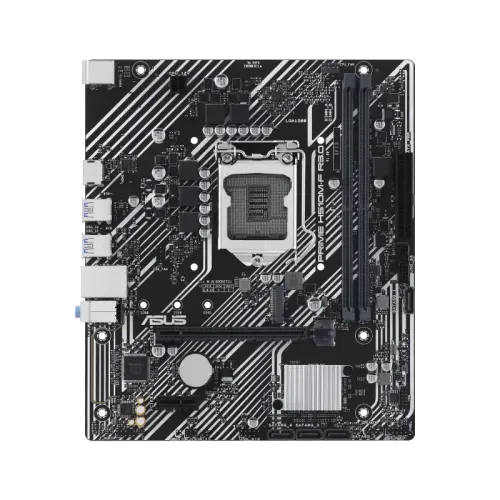

Model: PRIME H510M-F R3.0
Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
Graphics Output: 1x HDMI port
Features: 1 x Realtek 1Gb Ethernet
View More Info
| Chipset | Intel H470 Chipset |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Memory Type | DDR4 |
| Memory Slot | 2 x DIMM |
| Memory Max. | Max. 64GB |
| Supported Memory | 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Graphics | Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| PCI Express Slot | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
| USB Port | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| HDMI Port | 1x HDMI |
| TPM Port | 1 x SPI TPM header (14-1 pin) |
| LAN Port | 1 x Realtek 1Gb Ethernet port |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm ) |
| Compatible Products | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Warranty Details | 3 years |
| Feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
