Chipset: Intel H510
Sockets Supported: LGA1200
Supported CPU: 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Generation: 10th/11th
Memory Slot: 2
Memory Max.: 64GB
Brand | Asus |

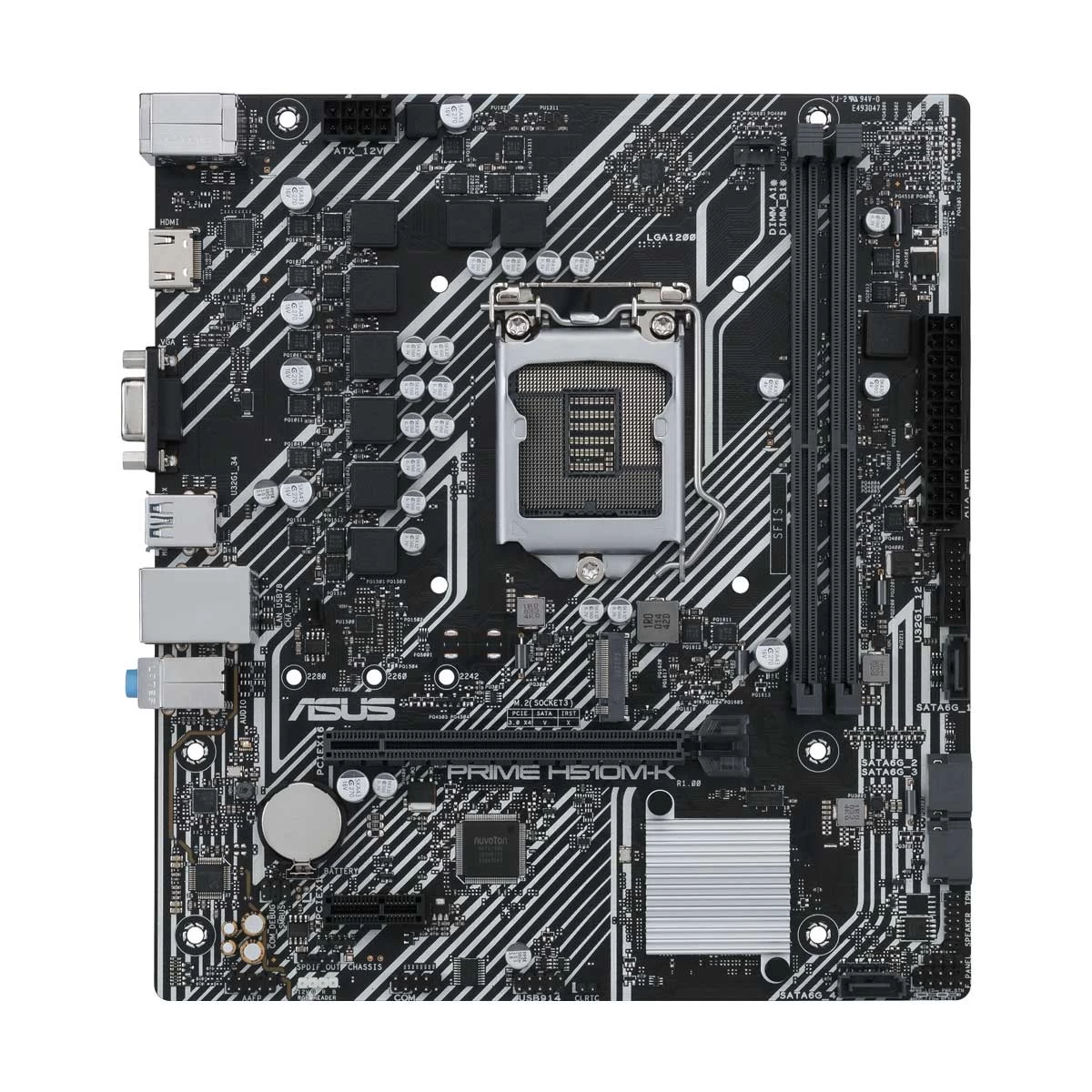

Model | Asus PRIME H510M-K |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel H510 |
Sockets Supported | LGA1200 |
Built-in Processor | No |
Supported CPU | 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
Generation | 10th/11th |
Memory Type | DDR4 |
Memory MHz | 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 64GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
Graphics | Integrated |
Graphics Chipset | Integrated with Processor |
PCI Express Slot | 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x1 |
Audio Chipset | Realtek ALC897/887 |
Audio Channel | 7.1 |
LAN Chipset | Intel I219-V |
WiFi | No |
USB Port | 3 x USB 3.2 Gen 1 Type-A, 5 x USB 2.0 Type-A |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
SATA Port | 4 |
Thunderbolt | No |
TPM Port | 1 |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
Supported Operating System | Windows 10 |
Warranty Details | 3 Years Replacement Warranty |
Feature | ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. |
Others | 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
