Chipset: Intel H470
Sockets Supported: LGA1200
Supported CPU: Supports 10th Gen Intel Core and Pentium Gold/Celeron processors
Generation: 10th
Memory Slot: 2
Memory Max.: 64GB
Brand | MSI |

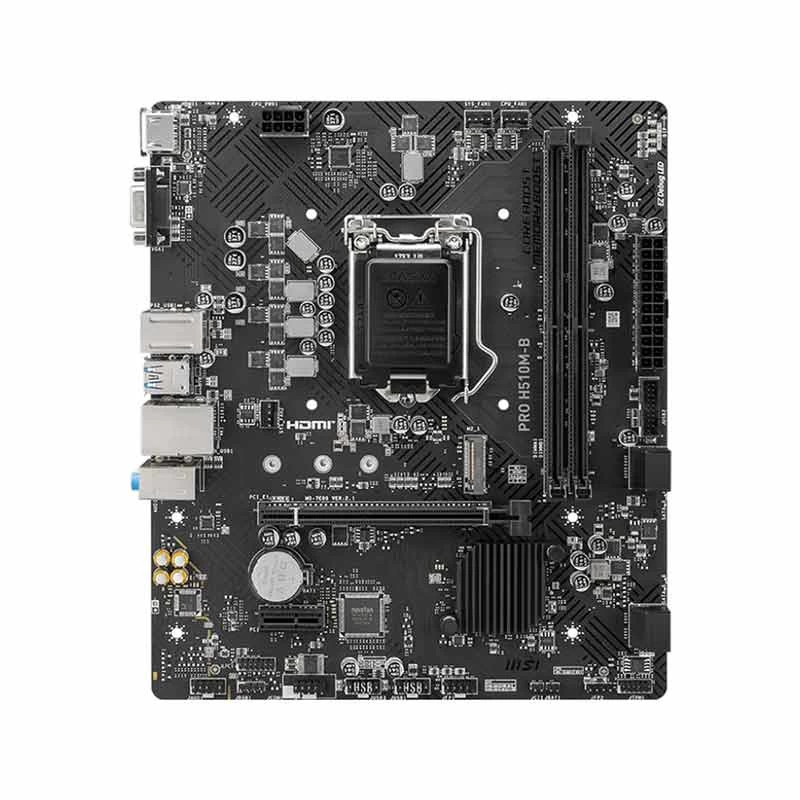

Model | MSI PRO H510M-B |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel H470 |
Sockets Supported | LGA1200 |
Built-in Processor | No |
Supported CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors |
Generation | 10th |
Memory Type | DDR4 |
Memory MHz | 3200/ 2933/ 2800/ 2666/ 2400/ 2133MHz non-ECC, un-buffered memory |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 64GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 Type 2280/2260/2242 supports up to PCIe 3.0 x4 / SATA mode |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCI-E x16 slot, 1 x PCI-E x1 slot |
Audio Chipset | Realtek ALC897 Codec |
Audio Channel | 7.1 |
LAN Chipset | Realtek 8111H Gigabit LAN |
LAN Speed (Mbps) | 10/100/1000 Mbps |
WiFi | No |
USB Port | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
VGA Port | 1 |
DVI Port | No |
HDMI Port | 1 |
DisplayPort (DP) | No |
SATA Port | 4 x SATA |
Thunderbolt | No |
TPM Port | 1 |
COM Port | 1 |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
RGB Connector | 1 x RGB LED connector(JRGB) |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
Supported Operating System | Windows 10 / 11 |
Compatible Products | Compatible with LGA1200 Socket 10th Gen Intel Processor. |
Warranty Details | 3 year |
Feature | Only 10th Gen Intel Processor Supported, Core Boost With premium layout and digital power design to support more cores and provide better performance, Advanced technology to deliver pure data signals for the best performance, stability and compatibility, Reward your ears with studio grade sound quality, Protecting VGA cards against bending and EMI for better performance, stability and strength. |
Others | Back Panel Ports: (Keyboard / Mouse, Audio Connectors), Internel Connectors: (1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)) |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
