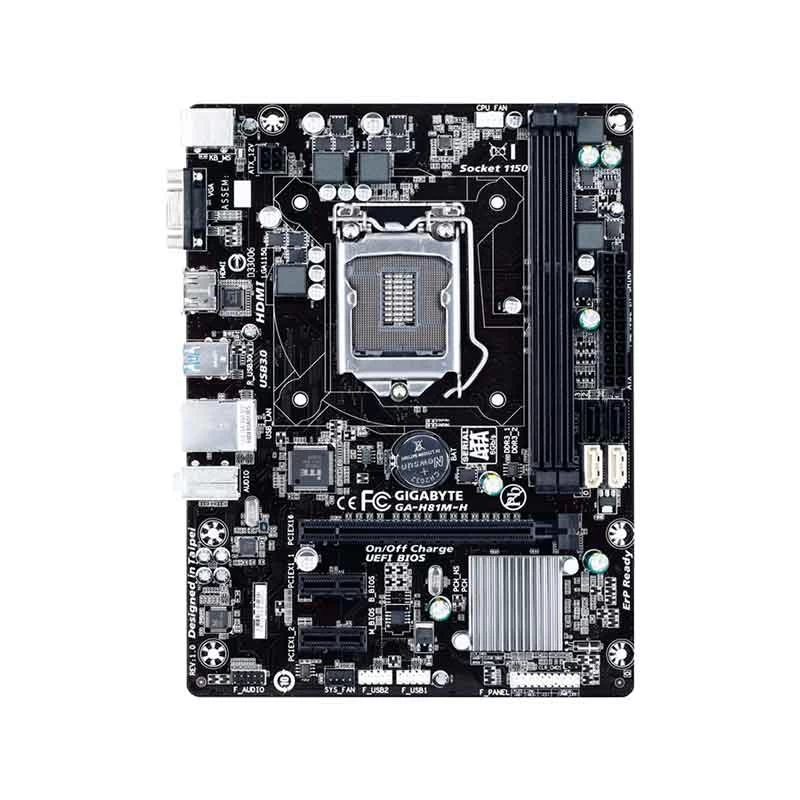

Chipset: Intel H81
Sockets Supported: LGA1150
Supported CPU: LGA1150 Sockets Intel Core, Pentium, Celeron 4th gen Intel Processors.
Generation: 4th
Memory Slot: 2
Memory Max.: 16GB
| Brand | Gigabyte |
| Model | Gigabyte GA-H81M-H |
| Body Color | Black |
| Chipset Brand | Intel |
| Chipset | Intel H81 |
| Sockets Supported | LGA1150 |
| Built-in Processor | No |
| Supported CPU | LGA1150 Sockets Intel Core, Pentium, Celeron 4th gen Intel Processors. |
| Generation | 4th |
| Memory Type | DDR3 |
| Memory MHz | 1600/1333 MHz non-ECC memory. |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max. | 16GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | No |
| Graphics | Integrated |
| Graphics Chipset | Intel HD Graphics support |
| PCI Express Slot | 1 x PCI Express x16 slot running at x16, 2 x PCI Express x1 slots |
| Audio Chipset | Realtek ALC887 codec High Definition Audio |
| Audio Channel | 2/4/5.1/7.1 |
| LAN Chipset | Realtek GbE LAN |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| WiFi | No |
| USB Port | 2 x USB 3.0/2.0 Type-A, 2 x USB 2.0/1.1 Type-A |
| VGA Port | 1 |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | No |
| SATA Port | 4 x SATA |
| Thunderbolt | No |
| TPM Port | No |
| COM Port | No |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | No |
| RGB Connector | No |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| BIOS Type | 1 x 32 Mbit flash |
| BIOS Model | AMI EFI BIOS |
| Supported Operating System | Windows 7 / 8 / 8.1 / 10 |
| Compatible Products | Compatible with LGA1150 Socket 4th Gen Intel Processor. |
| Warranty Details | 3 year |
| Feature | GIGABYTE Ultra Durable Technology, LAN with high ESD Protection, Solid capacitors for CPU VRM design, System voltage detection, CPU/System temperature detection, CPU/System fan speed detection, CPU/System overheating warning, CPU/System fan fail warning, CPU/System fan speed control |
| Others | Back Panel Connectors: (1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)), I/O Controller: iTE I/O Controller Chip, Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x Clear CMOS jumper) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
