Chipset: Intel H81
Sockets Supported: LGA1150
Supported CPU: 4th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors
Generation: 4th
Memory Slot: 2
Memory Max.: 16GB
Brand | Asus |

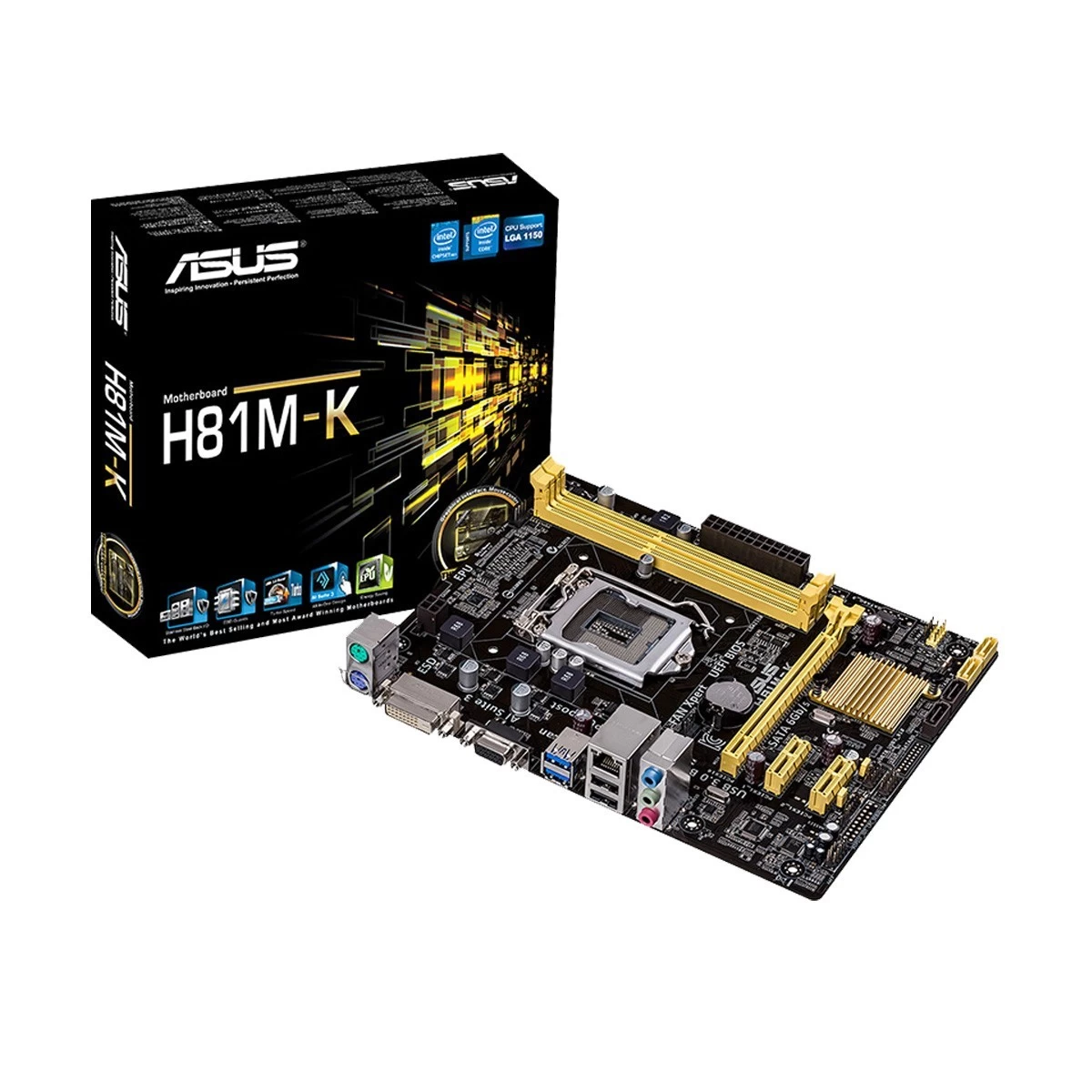

Model | Asus H81M-K |
Body Color | Black |
Chipset Brand | Intel |
Chipset | Intel H81 |
Sockets Supported | LGA1150 |
Built-in Processor | No |
Supported CPU | 4th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors |
Generation | 4th |
Memory Type | DDR3 |
Memory MHz | 1600/ 1333/ 1066 MHz |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 16GB |
Optane Memory Support | No |
Storage Interface | 6Gb/s, 3Gb/s |
M.2/SSD Expansion Slot | No |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 1 x PCI |
Audio Chipset | Realtek ALC887-VD |
Audio Channel | 8 |
LAN Chipset | Realtek RTL8111G |
WiFi | No |
USB Port | 2 x USB3.1 Gen 1, 8 x USB2.0 |
VGA Port | 1 |
DVI Port | 1 |
HDMI Port | No |
SATA Port | 2 x SATAII, 2 x SATAIII |
Thunderbolt | No |
CrossFire Support | No |
Sli Support | No |
RGB Support | No |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
Warranty Details | 3 year |
Others | 1 x CPU Fan connector(s), 1 x System panel(s), 1 x Parallel port(s), 1 x Clear CMOS jumper(s), 1 x Audio jack(s) |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
