PSU Category: Non Modular
Type: ATX 12V v2.31
Maximum Power: 650 Watt
Efficiency: 89% Efficiency
Efficiency Rating: 80 Plus Bronze
Protection: OPP, UVP, OVP, SCP, OCP
Brand | Gigabyte |

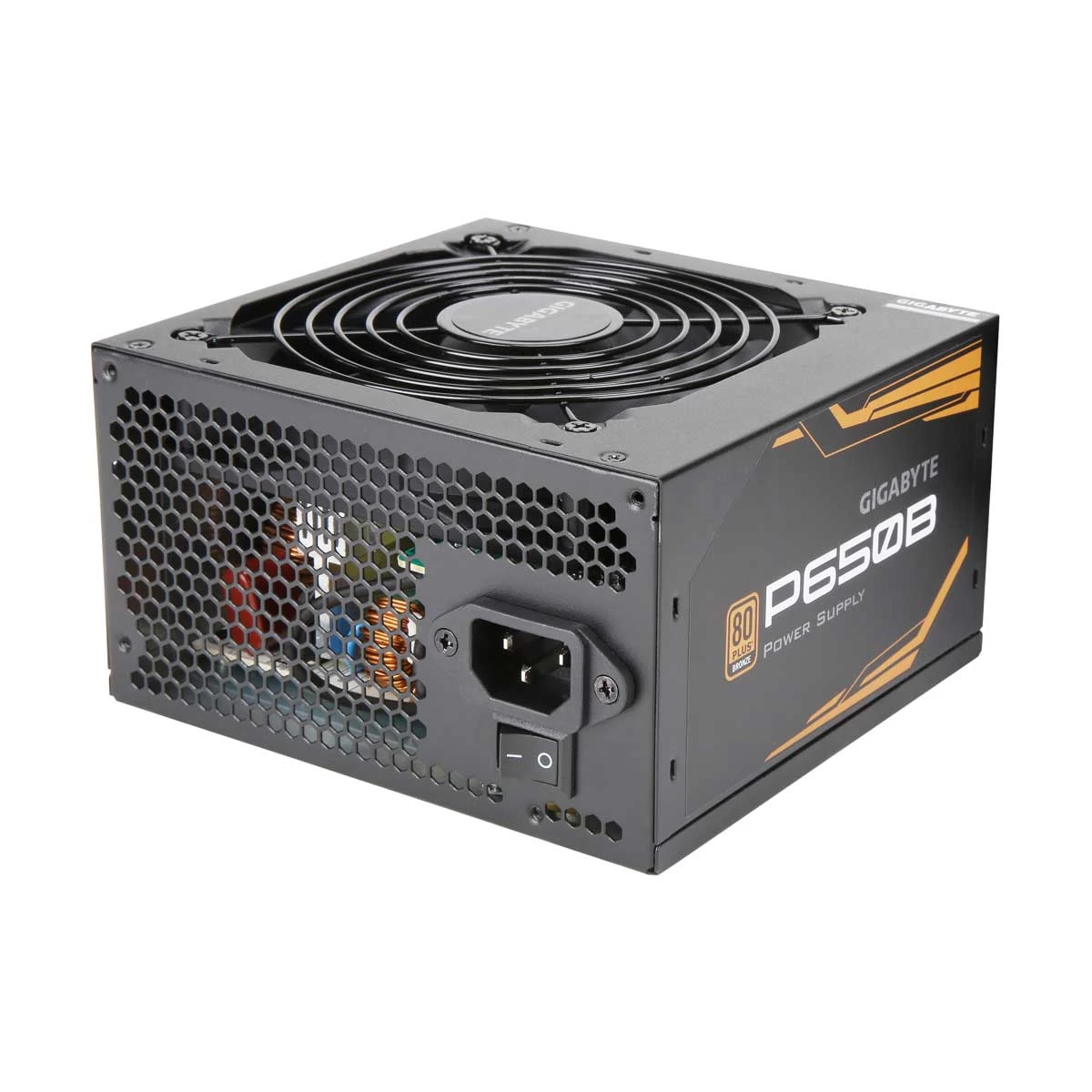

Model | Gigabyte P650B 650W |
PSU Category | Non Modular |
Type | ATX 12V v2.31 |
Fan Size | 120mm |
Lighting Effect | No |
Fan Bearing | Hydraulic Bearing |
Efficiency | 89% Efficiency |
Efficiency Rating | 80 Plus Bronze |
PFC (Power Factor Correction) | Active PFC (>0.9 typical) |
Protection | OPP, UVP, OVP, SCP, OCP |
Over Voltage Protection (OVP) | Yes |
Over Power Protection (OPP) | Yes |
Over Current Protection (OCP) | Yes |
Over Temperature Protection (OTP) | No |
Short Circuit Protection (SCP) | Yes |
Under Voltage Protection (UVP) | Yes |
ATX Main Connectors | 1 |
EPS Connectors | 1 |
PCIe Connectors | 4 |
SATA Power Connectors | 6 |
4-Pin Peripheral Connectors | 3 |
Min. Power (Approx.) | 575W |
Maximum Power | 650 Watt |
Input Voltage | 100 - 240V |
Input Frequency Range | 50Hz - 60Hz |
Input Current | 9A-4A |
MTBF | 100,000 hours |
Form Factor | ATX |
Dimensions | 140 x 86 x 150mm |
Color | Black |
Warranty Details | 3 year |
Others | Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation. |
Specialty | 80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency. P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case. Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation. 120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
