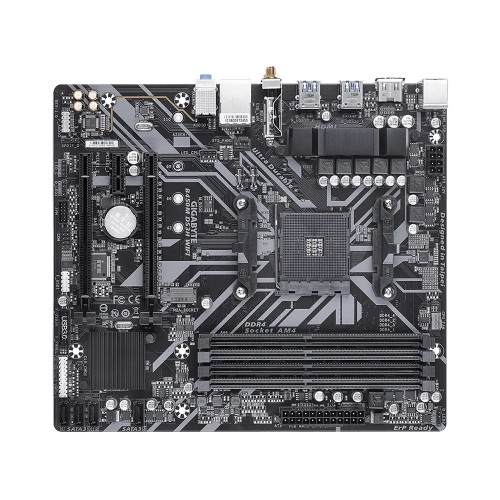

Model: B450M DS3H WIFI
Supported Processor: AMD Ryzen 5000/ 5000 G/ 3rd Gen / 2nd Gen / 1st Gen/ 2nd Gen
Supported Memory: Dual Channel DDR4, 4 DIMMs
Intel Dual Band 802.11ac WIFI & BT 4.2
High Quality Audio Capacitors
View More Info
| Brand | Gigabyte |
| Model | GIGABYTE B450M DS3H WIFI |
| Body Color | Black |
| Chipset Brand | AMD |
| Chipset | AMD B450 |
| Sockets Supported | AM4 |
| Supported CPU | AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors (Please refer "CPU Support List" for more information.) |
| Memory Type | Dual channel memory architecture |
| Memory MHz | Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Memory Channel | 4 x DDR4 DIMM sockets |
| Memory Slot | 4 x DDR4 DIMM sockets |
| Memory Max. | 128 GB |
| Graphics | Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon |
| PCI Express Slot | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) |
| WiFi | Yes |
| USB Port | CPU: 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| HDMI Port | 1 x HDMI port |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Warranty Details | 03 years |
