Chipset: AMD B450
Sockets Supported: AM4
Supported CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Generation: 2nd/3rd
Memory Slot: 4
Memory Max.: 128GB
| Brand | Asus |

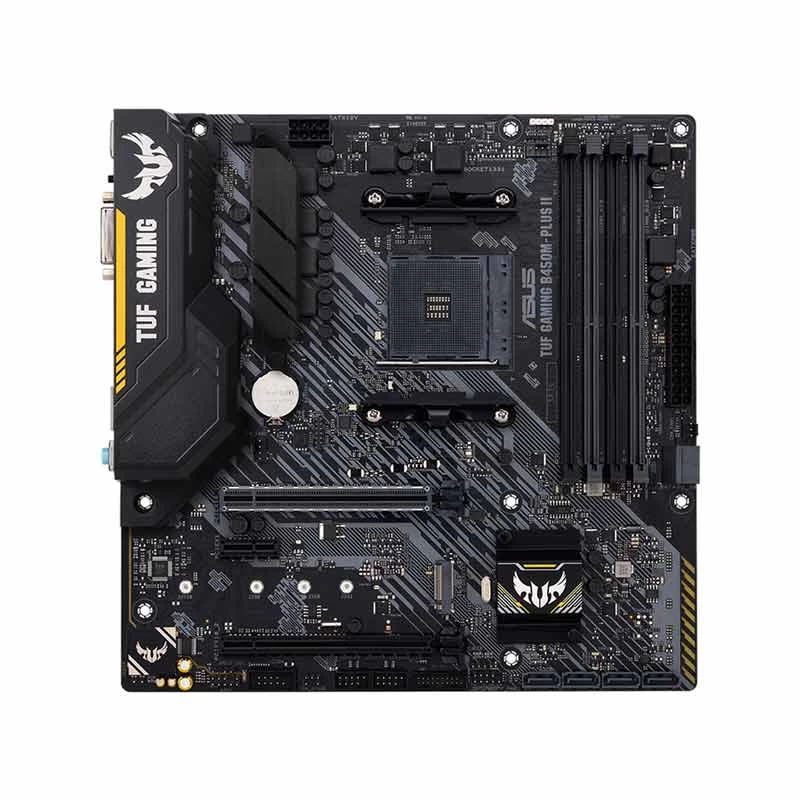

| Model | Asus TUF GAMING B450M-PLUS II |
| Body Color | Black |
| Chipset Brand | AMD |
| Chipset | AMD B450 |
| Sockets Supported | AM4 |
| Built-in Processor | No |
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Generation | 2nd/3rd |
| Memory Type | DDR4 |
| Memory MHz | 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz Un-buffered Memory |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| M.2/SSD Expansion Slot Details | 1 x M.2 (1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices) |
| Graphics | Integrated |
| Graphics Chipset | AMD Vega Graphics support |
| PCI Express Slot | 1 x PCIe 3.0/ 2.0 x 16 (x16 mode) (3rd/2nd/1st Gen AMD Ryzen Processors), 1 x PCIe 3.0/2.0 x16 (x8 mode) (2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors), 1 x PCIe 3.0/2.0 x16 (max at x4 mode) (Athlon with Radeon Vega Graphics Processors) |
| Audio Chipset | Realtek ALC887/897 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek RTL8111H 1Gb Ethernet |
| LAN Speed (Mbps) | 10/ 100/ 1000Mbps |
| WiFi | No |
| USB Port | 2 x USB 2.0, 2 x USB 3.2 Gen 1 (blue) Type-A, 1 x USB 3.2 Gen 2 (teal blue)Type-A, 1 x USB 3.2 Gen 1 (black) Type-C |
| VGA Port | No |
| DVI Port | 1 |
| HDMI Port | 1 |
| DisplayPort (DP) | No |
| SATA Port | 6 x SATA |
| Thunderbolt | No |
| TPM Port | 1 |
| CrossFire Support | Yes |
| Sli Support | No |
| RGB Support | RGB |
| RGB Connector | 1 x Aura RGB Strip Header |
| Approx. Power Consumption | 65W |
| Form Factor | Micro-ATX |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10, 7 |
| Warranty Details | 3 Years Replacement Warranty |
| Others | Internal I/O Ports: 1 x CPU Fan connector(s), 2 x Chassis Fan connector(s), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x Speaker connector, Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s), 1 x LAN (RJ45) port(s), 3 x Audio jack(s), 1 x BIOS FlashBack Button(s) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
