Chipset: AMD B550
Sockets Supported: AM4
Supported CPU: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors.
Generation: Not Applicable
Memory Slot: 4
Memory Max.: 128GB
Brand | Gigabyte |

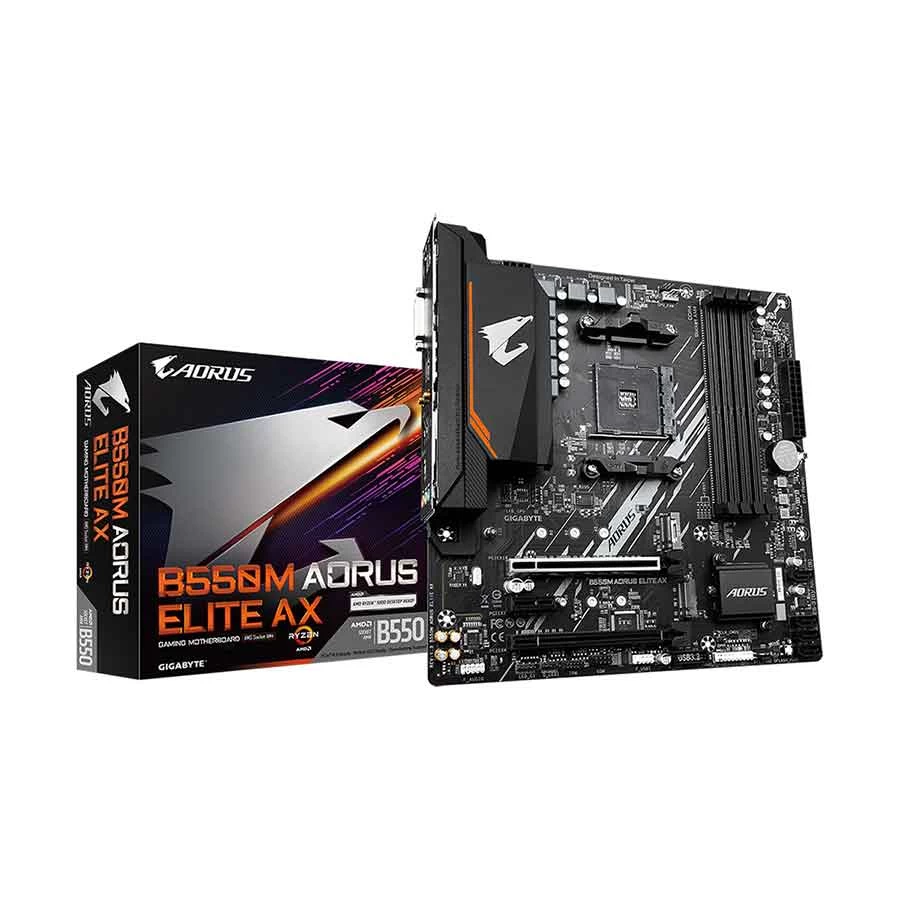

Model | Gigabyte B550M AORUS ELITE AX |
Body Color | Black |
Chipset Brand | AMD |
Chipset | AMD B550 |
Sockets Supported | AM4 |
Built-in Processor | No |
Supported CPU | AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors. |
Generation | Not Applicable |
Memory Type | DDR4 |
Memory MHz | 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz ECC, non-ECC Un-buffered DIMM |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Max. | 128GB |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 connector(M2A_CPU), M key, type 2242/2260/2280/22110 SSDs, 1 x M.2 connector (M2B_SB), M key, type 2242/2260/2280 SSDs. |
Graphics | Integrated |
Graphics Chipset | Integrated with Processor |
PCI Express Slot | 1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX4), 1 x PCI Express x1 slot (PCIEX1) |
Audio Chipset | Realtek Audio CODEC |
Audio Channel | 2/4/5.1/7.1 |
LAN Chipset | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
LAN Speed (Mbps) | 0/100/1000Mbps |
WiFi | Yes |
USB Port | 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports |
VGA Port | No |
DVI Port | 1 |
HDMI Port | 1 |
DisplayPort (DP) | No |
SATA Port | 4 |
Thunderbolt | No |
CrossFire Support | No |
Sli Support | No |
RGB Support | RGB |
RGB Connector | 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
BIOS Type | 1 x 128 Mbit flash |
BIOS Model | AMI UEFI BIOS |
Supported Operating System | Windows 10 / 11 64-bit |
Warranty Details | 3 year |
Feature | Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs, 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs, Ultra Durable PCIe 4.0 Ready x16 Slot, Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors, High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, Realtek GbE LAN with Bandwidth Management, RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. |
Others | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. Internal I/O Connectors - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button. Back Panel Connectors - 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 2 x SMA antenna connectors (2T2R), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks. I/O Controller - iTE I/O Controller Chip. |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
